Cantilever mounts are one of the most common ways to mount magnified optics on AR-15 and AR-10 rifles, especially when running LPVOs or mid power scopes. While shooters often focus on the optic itself, the mount plays a major role in how well the rifle actually performs.

The problem is the market is flooded with options, cheap mounts, expensive ones, poorly designed ones, and then the awesome ones. A good cantilever mount turns a collection of parts into a rifle that holds zero and performs consistently.

Choosing the right mount is what ultimately ties the rifle and optic together. But not every mount is designed for the same job, which makes choosing the right one for your specific build just as important.

That’s why we broke this guide into categories and focused on the best cantilever mounts available based on our hands on testing.

THE QUICK LIST

Quick picks based on hands-on testing. Click any mount to jump to the details.

• Editor’s Choice / Best Jack-Of-All-Trades Mount

  Scalarworks FUSE
  Jump to details →
• Best Lightweight Mount

  American Rifle Company AIR Brace
  Jump to details →
• Best Modular / Precision Mount

  Area 419 Cantilever Mount
  Jump to details →
• Best QD Mount

  DLOC Precision Cantilever
  Jump to details →
• Best General Purpose / Duty Mount

  Zero Gravity Summit
  Jump to details →
• Best Budget Mount

  Warne MSR MaxLite
  Jump to details →

Testing note: each mount was installed to spec, run for 700+ rounds before re-checking fasteners, then removed to inspect for scope tube marks or marring.

How We Picked The Mounts

I’ve spent countless hours behind rifles testing accessories. Scope mounts are one area that can often be overlooked and where weak designs show up quickly once rounds start going downrange.

The mounts in this guide are ones I’d feel completely confident trusting on any rifle. Each one locked up solid, held the scope securely, and didn’t damage the optic tube during testing or after torquing.

Every mount was installed to the manufacturer’s torque specifications and then run through 700+ rounds of live fire, ranging from .308 to 5.56, to see how they handled recoil and abuse. After the range session, the rings were removed and the scope tube inspected to check for marring, damage or movement.

I’ve had mounts fail… screws stripping before reaching torque spec, mounts working themselves loose under recoil, QD systems with poor retention, and some that left marks on the scope tube. The mounts below I can confidently say are none of those. If there’s a specific mount you’d like to see tested, feel free to leave a comment below.

Scalarworks FUSE — Editor’s Choice / Best Jack-Of-All-Trades Mount

The Scalarworks FUSE ended up being the most versatile mount I tested. It’s lightweight, extremely well machined, and feels incredibly compact and rigid installed.

One feature that really stood out during installation is Scalarworks LevelDrive system, which helps simplify leveling the optic. However, it does have a limitation, it only works properly if the bottom of the scope is actually true to the reticle, so confirming level with (my favorite) the plumb bob method is still important.

The ring design is also well thought out. The caps feature three screws per side with wider rings, which helps distribute clamping pressure more evenly across the scope tube compared to traditional two screw designs. This helps prevent optic movement and reduces the chance of marring the tube.

I ran the mount on a GP rifle build with a Trijicon Credo 1-10 paired with a 12 o’clock Acro P2 using Scalarworks KICK accessory line. The system offers solid modularity, allowing for offset or 12 o’clock back up dots, and even integrated levels.

After putting roughly 700 rounds through the setup before checking torque, nothing shifted and held zero the entire time. Then the rings were removed and the scope tube looked exactly the same as it did before installation.

Because it balances weight, strength, compactness and modularity, the FUSE earns its spot as the Editor’s Choice and the “Jack of All Trades” mount.

← Back to the quick list

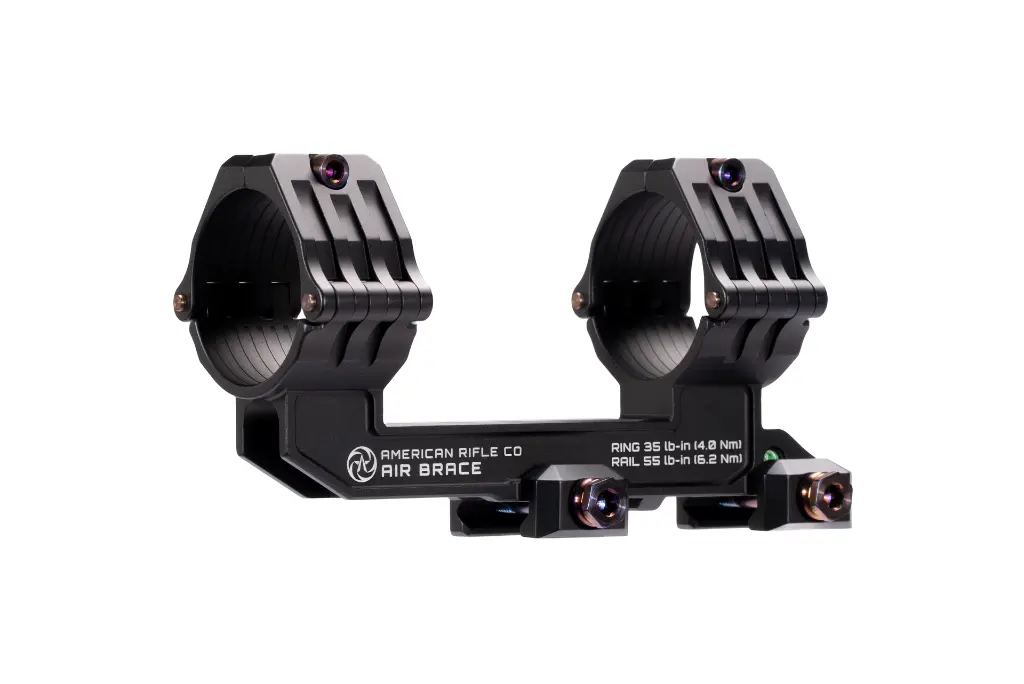

American Rifle Company AIR Brace — Best Lightweight Mount

The American Rifle Company AIR Brace is one of the lightest cantilever mounts I’m aware of on the market, coming in at under 4 ounces. But despite the extremely low weight, it doesn’t sacrifice rigidity or performance.

One feature you don’t see very often, but is common with ARC mounts, is the hinged ring design. this keeps the clamps symmetrical while tightening, which eliminates scope roll when torquing and makes installation noticeably smoother. It also helps prevent residual torsion from being introduced into the scope tube. Relief cuts at the 12 o’clock position further reduce the chance of marring the tube.

The mount’s tubular cantilever structure maximizes stiffness while keeping the design lightweight and compact. It almost reminds me of a miniature I beam, giving the mount excellent rigidity with virtually no flex once installed.

Another nice feature is the built in level at the rear of the mount, allowing you to confirm the rifle is level without breaking cheek weld.

After roughly 700 rounds of testing, the mount stayed completely secure, zero stayed locked and the scope tube showed no marks or damage from the rings.

The only drawback is the lack of modular accessories… it has zero. But for lightweight precision or RECCE style builds, the AIR Brace is an excellent option.

← Back to the quick list

Area 419 Cantilever Mount — Best Modular / Precision Mount

If you haven’t heard of Area 419, they’ve built a strong reputation for producing high quality precision rifle accessories. The Area 419 Cantilevered Tactical One Piece Mount clearly reflects that reputation, but what really sets it apart is its modularity.

Area 419 offers an extensive modularity ecosystem for this mount. You can run 12 o’clock plates (high or low) for multiple optic footprints, 30° or 45° offset mounts, picatinny rails, diving boards in different heights, and integrated levels. The best part is you can configure these accessories without ever having to remove the ring caps, which makes adjusting the setup quick and easy compared to some other systems.

The mount is also engineered with precision in mind. Each base and cap set is machined from 7075 aluminum and final bored together as a matched pair, ensuring perfect ring alignment straight from the factory. Because of this process, the internal ring surfaces have a raw aluminum finish, which helps create a very secure grip on the scope tube. Each ring cap is also labeled and must be reinstalled in its original position. The rings themselves have a wide footprint with two screws and a center dowel, helping ensure the caps seat properly and clamp evenly side to side.

Performance wise, the mount is extremely solid. It clamps firmly to both the rail and the scope tube, and after close to 1,000 rounds of testing, nothing loosened or shifted. When the scope was removed, you could see where the rings had contacted the tube due to the raw aluminum, but the marks wiped away pretty effortlessly with a microfiber cloth.

This mount is definitely overbuilt, which means it’s not the lightest option at around 8-9 ounces without accessories which isn’t the worst but can stack up quick depending on your setup, and it can feel slightly bulky depending on the optic. For example, with my Vortex Razor HD 1-6, the mount shows its bulk a little more than some minimalist designs.

Still, that extra strength creates an incredibly rigid platform with zero flex and a rock solid lockup. While it competes as one of the best precision or match grade mounts, it also earns the Best Modular Mount category because no other mount I’ve tested offers this level of accessory flexibility while maintaining this level of performance. The only mount that came close in terms of modularity is the Badger Ordnance and their COMM.

← Back to the quick list

DLOC Precision Cantilever — Best QD Mount

Quick detach mounts are one of those things shooters either love or hate. Some people simply don’t trust the repeatability of QD systems, and for a long time it was hard to find one that truly locked up and maintained zero. The DLOC Precision Cantilever Mount is the first QD mount I’ve tested that actually gave me confidence when removing and reinstalling the optic.

DLOC may not be one of the biggest names in the mount world, but those familiar with their products know the quality speaks for itself. The mount is designed, machined, and assembled in Texas, and the patented Deros Lock On Control (DLOC) system is what really sets it apart.

Unlike traditional QD mounts, the DLOC doesn’t use large external levers. Instead, it uses spring loaded knobs and an auto adjusting lockup system that grabs significantly more rail surface than most designs. On the underside of the mount are three recoil lugs per rail interface, which increases rail engagement and helps maintain consistent alignment when removing and reinstalling the mount.

Mounting is simple. You back the knobs out, press them in, place the mount on the rail, and snug them down by hand. There’s no need for tools or torque adjustments. Crazy I know.

What really stood out is how secure the mount feels. Even before tightening the knobs, the mount already feels locked onto the rifle with practically zero movement, and once snugged down it creates an extremely solid lockup.

During testing I was extremely impressed with the return to zero performance. Quick detach mounts usually have at least a little play, but the DLOC returned almost perfectly to zero every time it was reinstalled. I’ve honestly never seen a QD mount lock up and hold zero this easily.

After around 500 rounds of testing, repeatedly removing and reinstalling the mount every 100 rounds, nothing loosened and zero never shifted. The rings stayed properly torqued, the scope never moved, and when the optic was removed the tube showed no marks or damage.

For shooters who want a reliable quick detach mount without sacrificing rigidity or repeatability, the DLOC is easily one of the most impressive mounts I’ve tested. I still can’t get over how secure the mount feels, even with the knobs completely backed off.

← Back to the quick list

Zero Gravity Summit — Best General Purpose / Duty Mount

The Zero Gravity Summit takes a different approach to scope mounting by focusing on how the rings clamp around the optic. Traditional two piece ring designs can allow small gaps when torqued down, which can slightly deform the scope tube when over tightened. Zero Gravity solves this by using a three-piece ring design that overlaps the contact surfaces, allowing the rings to come together evenly.

This is the second mount on this list that uses that hinged ring-style system, like the ARC Air Brace the rings close evenly during torquing, which helps eliminate the “scope roll” that can make leveling an optic frustrating.

The base of the mount has a nice wide footprint for stability, but material is removed where it isn’t needed to keep the weight down. Even with its wide footprint, the mount comes in at just over 5.5 ounces, making it a great balance between strength and weight.

The mount also features flush rail clamp screws, giving it a sleek, streamlined profile once installed, once torqued down to the rail, it locks up extremely solid with no flex or movement at all.

During testing I ran the mount through 500 rounds of .308, and nothing moved. The rings held their torque, the optic stayed secure, and after removing the scope there were no marks or damage on the tube.

Unlike the AIR Brace, the Summit also offers limited modularity, allowing the hinged ring section to be swapped for a 12-o’clock red dot mount supporting multiple footprints.

Because it balances weight, rigidity, easy of installation and its slight modularity, the Zero Gravity Summit earns its spot as the Best General Purpose Mount in this guide. It’s nothing over the top but everything a GP rifle would need.

← Back to the quick list

Warne MSR MaxLite — Best Budget

There were a few solid contenders for the Best Budget Mount category, including the Vortex Sport Cantilever Mount and the Swampfox Freedom Mount, but the Warne MSR MaxLite ultimately took the spot. It really bridges the gap between affordability and reliability while still maintaining the Made in USA quality Warne is known for.

The MaxLite is built from 6061 T6 aluminum with a black anodized finish and weighs just over 6 oz, making it surprisingly lightweight for a mount in this price range. It features MSR height which is just warnes way of saying its 1.5″ high, pretty standard for AR platform. Right now the mount is limited to 1 inch and 30mm ring options.

It’s a fairly simple design with two screws per ring cap and a single recoil lug per rail interface, but that simplicity works in its favor.

After about 500 rounds, the mount performed very well for a budget option. The screws torqued properly, the mount stayed locked up through live fire, and nothing came loose. After removing the rings, there was no visible damage or marring on the scope tube.

If you’re looking for a reliable cantilever mount that doesn’t break the bank, the Warne MaxLite is an excellent value.

← Back to the quick list

Final Thoughts

When it comes to scope mounts, they’re one of the most overlooked parts of a rifle setup, and that usually leads to frustrating zeroing issues, constant problem solving, or chasing down a shift that shouldn’t be happening in the first place.

After a lot of testing and hands on experience, these are the mounts I’d personally trust on just about any build. Every mount in this list proved it could stay tight, hold zero, and protect the scope tube. They all serve different purposes, though, and which one is right for you really comes down to your rifle and what you want the setup to do.

Most of these mounts aren’t cheap, with many landing in the $300 range, but that extra cost usually comes with better engineering, stronger lockup, and reliable repeatability once the rifle is put together. The Warne MaxLite is the budget option here, but budget mounts in general tend to be where you see more stripped threads, mounts working loose, and other issues show up faster.

If you want, I can also put together a dedicated Best Budget Cantilever Mounts article. I already mentioned a few solid contenders in this guide, and that would let me go deeper while testing even more options.
