Scalarworks FUSE Scope Mount Review: The Jack Of All Trades

Shopping for an scope mount is one of those tasks that seems simple until you step into a market overflowing with promised features and options. Weight can add up fast, bulky mounts can throw off balance and confidence behind the rifle, and modularity is often limited or nonexistent. If you’re looking for something compact, lightweight, and capable of adding accessories or backup dots, you may have come across the Scalarworks FUSE. Which is probably why you are here.

It’s compact, lightweight and offers modular capability, but the most unique feature that immediately peaked my interest is Scalarworks LevelDrive system. Instead of relying on bubble levels, special tools, or the plumb bob method, LevelDrive is designed to mechanically level the scope during installation. It looks great on paper and all, along with the rest of the mount’s features, but does it actually work? That’s what this review is here to answer by breaking down the Scalarwork Fuse, running it on a rifle, and seeing how it holds up after hundreds of rounds downrange.

Scalarworks FUSE Overview

The Scalarworks FUSE series is a family of bolt on optic mounts engineered to be lightweight, rigid, and low profile for scopes on a MIL-STD-1913 Picatinny rail. Instead of using quick detach levers, these mounts rely on a traditional bolt on design for more permanent and repeatable positioning once installed. The mounts are precision machined from 7075-T6 aluminum with hardened steel hardware and finished with an anodized coating for long term durability.

The FUSE lineup includes multiple options based on optic tube size: FUSE/02 (30mm tube), FUSE/03 (34mm tube), FUSE/04 (35mm tube) and the FUSE/05 (36mm tube)

The 02/03 mounts are offered in 1.57-inch and 1.70-inch optic heights, as well as Black and FDE finishes, 04/05 mounts are only offered in 1.57″ height but also Black and FDE finishes. While all models share the same core design and mounting approach, this review focuses specifically on the FUSE/03 scope mount if you were wondering.

What’s in the Box

• Scalarworks FUSE
• 12 #8-40 nylon patched screws
• Scalarworks T15 Torx driver bit
• Scalarworks T25 Torx driver bit
• Scalarworks LevelDrive scope leveling tool

Technical Specifications

Specification	FUSE/03 (34 mm)
Materials	7075-T6 Aluminum / 4140H Steel
Finish	Hard Anodizing / Flash Nitride
Ring Diameter	34 mm
Optic Center Height over Rail	1.57″ / 1.70″
Weight	151 g (5.32 oz) / 157 g (5.54 oz)
Cant	0 MOA
Rail Compatibility	MIL-STD-1913 Picatinny
Origin	United States

---

Quick Features

• Lightweight, Bolt-On Design — Adds minimal weight while providing a rigid, repeatable mounting interface once installed.
• LevelDrive System — Integrated mechanical leveling system designed to simplify scope installation and alignment.
• Durable Construction — CNC-machined 7075-T6 aluminum body paired with hardened steel hardware for strength and long term reliability.
• Low-Profile Fit — Slim footprint keeps the optic setup compact without unnecessary bulk. Which add confidence and balance to the rifle.
• Wide Ring Caps — Increased surface contact around the scope tube helps distribute clamping force evenly and reduce the chance of scope movement or stress.
• Modular KICK Compatibility — Designed to accept Scalarworks KICK mounts for backup dots, allowing clean integration of a secondary red dot without adapters.

Build Quality & Design

Handling the FUSE in person, the first thing that stands out is how light it feels. It’s not the lightest mount I’ve used, that title still goes to the ARC AIR Brace, but it’s definitely a close second. But one thing it does have over the ARC Air Brace is its modularity. Coming in at 5.3 oz it’s the lightest mount that feature modularity that I’ve used.

Machining and finish are exactly what you’d expect at this price point. There are no sharp edges, uneven surfaces, or cosmetic flaws. It’s a slim, compact mount that looks refined rather than aggressively skeletonized.

The mount itself is clearly labeled with all torque values and alignment guidance, including markings to prevent uneven ring gaps. One side the of mount says no gap for the ring caps. The marketings alone removes a lot of guesswork, especially for anyone who has spent too much time second-guessing ring alignment or searching for torque specs.

The ring design definitely deserves some recognition. The caps are wider than average, providing extra surface area contact around the scope tube without being bulky. You don’t see that much in lightweight mounts. Each ring uses three screws per side rather than the more common two, which helps distribute clamping force more evenly and reinforces the overall sense of rigidity.

My only real complaint from a design standpoint is related to KICK accessory mounting. When running a the 12 o’clock Acro plate (in my case on the front ring), the mounting screw installs from the underside of the ring into the KICK plate. This means the ring cap has to be removed to add or change KICK accessories later on. It’s not a dealbreaker, but it’s worth noting if you plan to swap piggyback optics frequently or add one in the future.

Installation & LevelDrive

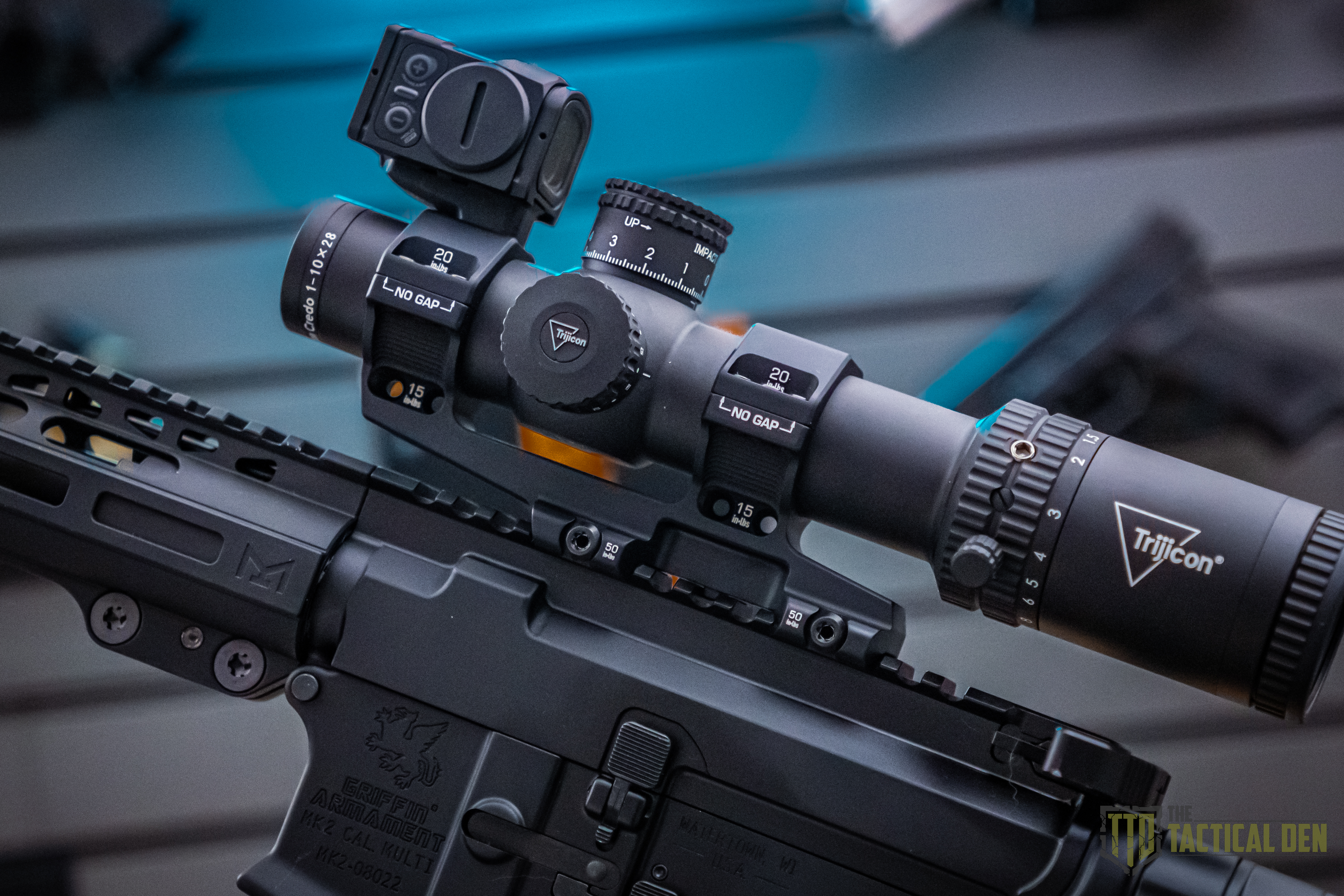

For installation, I mounted a Trijicon Credo 1-10 with an Aimpoint Acro P-2 in a 12 o’clock configuration on the front ring (Just a little tip and why I always run the back up on the front ring it’s so it doesn’t back the elevation turret values while in use). The mount comes with almost everything needed for installation the only additional tool required is a torque driver, and I used the Real Avid SmartTorq Driver, which has become a go to for me.

I set the scope in the mount and installed the ring caps, tightening the no gap side all the way flush, then the opposite hand tight, leaving just enough clearance for the level adjustment. Installed the LevelDrive tool from the bottom and hand tightened until the scope and level were flush, be careful to avoid over tightening and putting excess pressure on the scope tube (one issue I can see arise with an inexperienced or careless installer). From there, everything was torqued to spec (which is labeled at every screw on the mount). All hardware torqued smoothly with no binding or stripped threads.

After removing using the LevelDrive tool, I mounted the optic to a badger ordnance deadlevel, torqued the clamp and confirmed alignment using the plumb bob method, and the reticle was dead on. That said, another issue that could arise with the LevelDrive is it’s only as accurate as the scope itself, higher quality optics benefit most, and alignment should always be verified after installation. Those cheaper, lower end scopes (maybe even some higher end one too) might not have a reticle that is true to the bottom of the scope which renders this useless. Not Scalarworks LevelDrive fault but it’s just reality.

Performance

After roughly 700 rounds with this setup, the FUSE mount has been excellent. It holds the scope securely without feeling bulky or overbuilt, even with a 34mm tube and a 12 o’clock backup dot. The mount is super sleek on the rifle and the overall setup feels compact rather than top heavy.

The Acro P-2 mounted with a Kick/07 Low, sits in a usable position, though with the tall elevation turret on the Credo it does slightly intrude into the already limited Acro sight window. It’s noticeable, so the Kick/07 High Acro Plate may be a better fit in the future.

Zero never shifted throughout testing, which speaks to both the mount and the optic working as a team. The hardware stayed properly torqued, nothing loosened, and the mount remained locked to the rail without needing to be retightened. As much as I’m not a fan of having to remove the front ring cap to change KICK accessories, the upside is that the Acro mount never came loose. If it had, it would have been annoying to retorque.

I removed the mount from the rifle after testing and saw no signs of movement on the rail. I also pulled the rear ring cap to check for marking or stress on the tube. After wiping off, the scope looked like it had never been mounted, which is exactly what you want to see from a high-quality mount with proper clamping force.

The modularity is a big plus as well. In addition to piggyback optics, the mount can accept offset mounts or a level, which I may add down the line. As it sits now, though, the FUSE feels like a jack of all trades scope mount for my GP rifle. It’s secure, compact, and confidence inspiring once rounds start going downrange.

Overall Rating

Build Quality – 5.0 / 5

The FUSE is extremely well made. Machining and finish are flawless, and the wide ring caps with six screws per ring provide an extremely strong and even clamping force without marking the scope tube. Everything feels precise, solid, and intentional, with no flex or weak points once installed.

Performance & Zero Retention – 5.0 / 5

After extended range time, the mount never shifted, never loosened, and never required re torquing. Zero remained consistent throughout testing, and the mount stayed locked to the rail. Once set up, it’s a true install it once and forget about it mount.

Design & Weight – 4.8 / 5

The FUSE strikes an excellent balance between low weight and structural strength. While it isn’t the absolute lightest mount I’ve used, it’s close and it offers far more modularity than lighter options. The slim, compact design keeps the rifle feeling balanced, even with a Credo 1-10 and 12 o’clock Acro P-2. The mount does not offer a QD Picatinny interface, which may matter to users who frequently remove optics or your using irons as backup.

Modularity & Features – 4.2 / 5

KICK compatibility, wide ring caps, and LevelDrive System put the FUSE ahead of many mounts on the market. The two downsides is needing to remove the front ring cap to add or change KICK 12 o’clock mounts and the level drive it limited to scope that have reticles true to the bottom of the scope.

Value – 4.7 / 5

For a premium scope mount, the FUSE delivers excellent value. While it isn’t without flaws, its pricing is in line with competing mounts in the same category. With an MSRP starting at $319, it can seem expensive at first glance, but you’re getting a mount that’s built to last and perform long term.

Final Score: 4.75 / 5

Final Thoughts

After spending a lot of range time with the Scalarworks FUSE, it’s clear why this mount stands out. It balances lightweight design, rigidity, and modularity better than most mounts on the market, without feeling overbuilt or compromised. Installation is simple, well thought out, and eliminates any guesswork.

The LevelDrive system is genuinely an awesome concept, but it does have limitations. In reality, not all scopes have reticles that are perfectly true to the bottom of the scope body, a detail you would expect to be standard, but often isn’t. The wide ring caps provide excellent clamping force without marking the scope tube, and the overall fit and finish are top tier. The mount is compact, lightweight, confidence inspiring, and modular.

Because of that, the FUSE has earned its place as my Jack-of-All-Trades Scope Mount in the Best Scope Mounts of 2026 roundup. For shooters looking for a lightweight, compact, and modular mount that stays locked down once installed, this is a very strong option.
